Product Description

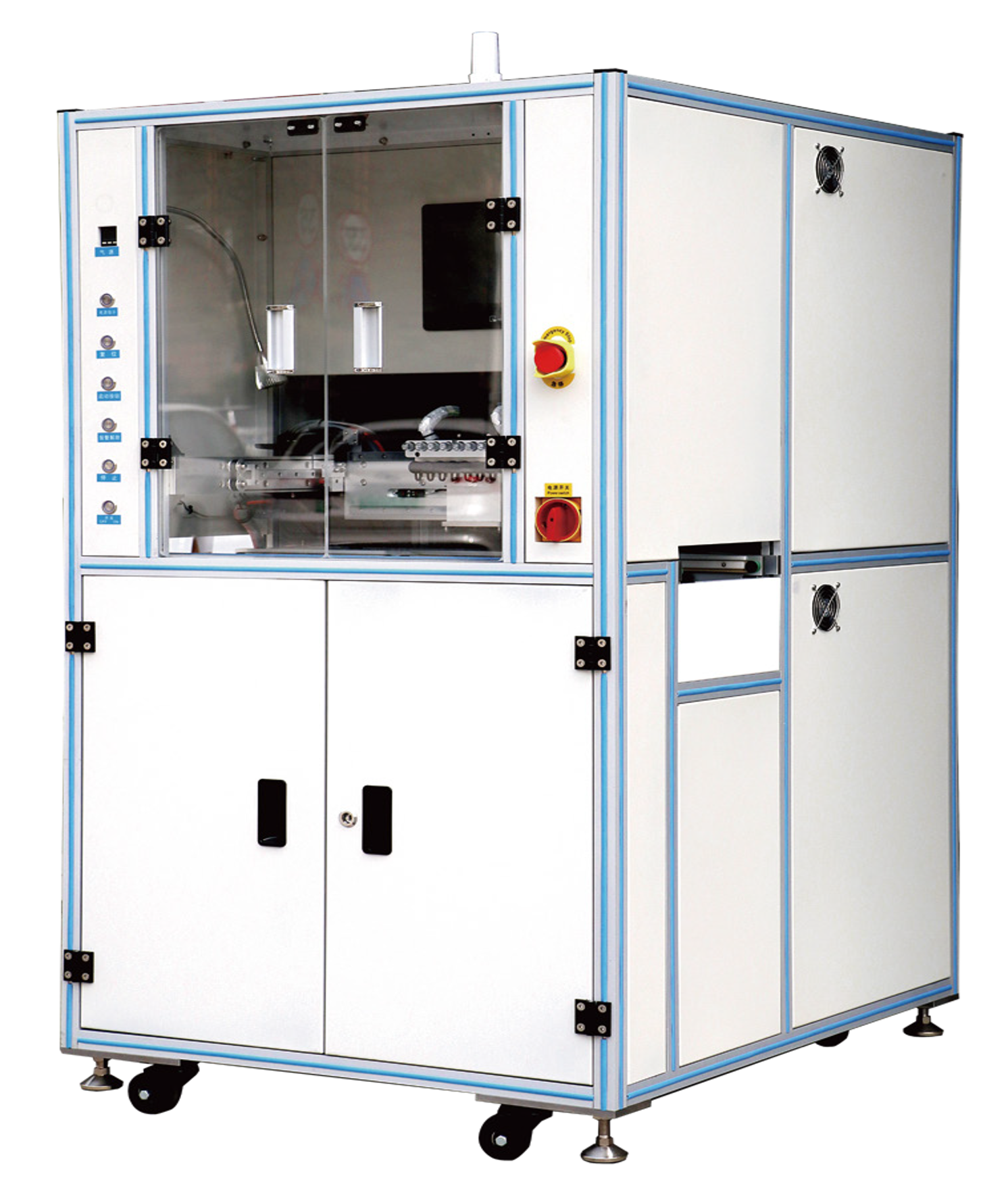

A fully automatic power PCBA test machine, the machine abandons the traditional ATE test method, the test fixture has also made revolutionary improvements, making the machine use cost is very low, compared with the traditional clamp cost can save about 70% ~ 80%. The wire change speed is greatly improved than the traditional test machine, which can be completed in only 3 to 5 minutes, and skilled personnel can complete the wire change within 3 minutes. The equipment test efficiency is high (production capacity is equivalent to about 4 times the human test speed), easy to control, the test parameters standards only need to be set on the man-machine interface, the equipment will automatically test the output parameters, and the test accuracy is high, NG products are marked automaticaly.
Test Items
Power conversion efficiency η;
Ripple test: test range ±500mV, test accuracy ±35mV；
Double output test: double U test; Input high voltage capacitor discharge (no arc discharge);
Capacity, NG number statistics, capacity reservation;
Test location memory and call;
Drop board detection,alarm;
Test pressure setting;
RGB LED indicator light test (optional);
Input voltage Uin (AC/DC), input current Iin (AC/DC), input power Pin (AC/DC);
Output no-load voltage U0, load voltage Uout, output current Iout;
Fast charge test:PD2.0、PD3.0、QC2.0、QC3.0、BC1.2（DCP）and other mainstream fast charge protocols;
D+/D- small voltage test: IC mode, resistance mode and custom programming mode (can detect LED indicator);
Double group test: Devices with more than 8 pieces in a single line are automatically divided into two groups for testing;
NG automatic marking, NG signal online (and online automatic dispensing machine online);
Standard with SMEMA interface, can achieve automatic online, automatic/semi-automatic mode arbitrary switch;
Custom test mode: can customize the number of programmable voltage output groups (6 groups) and each group of voltage, current value;
Input dual voltage test: two groups of input voltage (0 ~ 300V AC/DC) automatic switching;
Technical Parameters
| TYPE | YA-008 | ||
| Positioning accuracy | 士0.05mm | Plate width range | 50～~220mm |
| Repeat accuracy | ±0.05mm | Test range | lin:ACO~1A/DC0~5A，Uin:ACO~300V/DC0~30V lout:DC 0~5A,Uout:DC 0~30V |
| Maximum speed | 660mm/s | Test accuracy | U(0.15%)×1(0.15%) |
| Transmission mode | Stepper+servo | Power supply | AC220V,50/60 Hz |
| Transportation mode | Three-stage conveyor | Air perssure | 5~8kg/cm2(0.4~0.7 Mpa) |
| Transportation speed | 600mm/s | Product weight | 520KG |
| Transportation direction | Left in and right out | Number of test | 1~8 routes per group(concurrent testing) |
| Plte edge width | 2mm(effective process edge width) | Product power consumption | About 0.2KW(excluding test consumption power) |
| Track height | 900±20mm | Test size | 360(L)×220(W)×30(T)mm |
| Online interface | Standard SMEMA | Product dimensions | 1180(L)×1000(W)×1800(H)mm |
