Product Description
A set of turning plate machine, dispenser as one of the machine. The dispenser is equipped with automatic equal spacing adjustment function of dispensing valve, automatic adjustment function of track width (including turning over track), combined with automatic storage function of formula, making it very convenient to change lines. With our power PCBA automatic testing machine, the machine will automatically close the dispensing valve corresponding to NG products to facilitate subsequent maintenance, or you can choose to open / close the dispensing function to carry out all dispensing, at the same time, the machine also has a plate passing mode, for products without dispensing, directly pass the plate. The equipment is small (ordinary passenger ladder can enter and exit), high efficiency, easy to operate, there is no special high professional requirements for operators, ordinary operators can control.
Product Features
Quick dispensing speed and high production capacity;
Gantry structure, simple and stable;
Glue quantity detection, automatic reminder;
Servo drive, higher precision;
Handle control, easy to set up With the plate turning machine, compact structure;
Big brand motor, quality assurance; No fixture, low cost;
Automatic track width adjustment, faster line change NG automatically shuts down dispensing;
Rubber barrel internal layout, appearance more coordinated;
Valve spacing automatic adjustment, quick line change;
PLC + touch screen, easy to understand, easy to operate;
Famous brand slide rail, high precision, low noise, long life, convenient maintenance;
The DISPENSING head rotates independently;
Support remote line changing; Standard MES system interface;
Connect with the NG signal of the test machine
Technical Parameters
| Type | YA-009 | Transportation mode | Three-stage conveyor |
| Positioning accuracy | 士0.05mm | Power Supply | AC220V,50/60Hz |
| Repeat accuracy | 士0.05mm | Air Pressure | 5~8kg/cm2(0.4~0.7MPa) |
| Flip cycle | 1.5s | Product weight | 360Kg or 520KG |
| Flip angle | 180°(Repeat) | On-line interface | StandardSMEMA |
| Maximum speed | 660mm/s | Edge width | 2mm(effective process edge width) |
| Transportation spped | 600mm/s | Dispensing routes | 1~8 routes |
| Transportation direction | Left in and right out | Product power consumption | About 0.2KW |
| Track height | 900±20mm | Dispensing CT | 13s |
| Board width range | 50～220mm | Dispensing size | Max:360(L)×220(W)mm Min:260(L)×50(W)mm |
| Transmission mode | Stepper+servo | Product dimensions | 860(L)×1000(W)×1800(H)mm |
SMT｜Power PCBA Tester and Dispensing Machine
| Projects | YA-008/009 Parameters | |
| Min | Max | |
| Repeat/Position Accuracy | ≤±0.05mm | |
| Pay-on Cycle | 600mm/s | |
| Product Length Size | 260 mm（L） | 360 mm（L） |
| Product Width Size | 50~220mm | |
| Process edge Size | 2mm（Minimum effective width ） | |
| Air Pressure | 0.5～0.8MPa | |
| Air Consumption | ≤5L /min | |
| Power Supply | AC:220±10%，50/60HZ，10A | |
| Power Dissipation | ～0.2KW | ～0.3KW |
| Machine Dimensions | 860(L)×1000(W)×1830(H)mm³ | 1180(L)×1000(W)×1830(H)mm³ |
| Weight | ～360Kg | ～520Kg |
| Operation Temperature | -20°C ～ +40°C | |
| Operation Humidity | 30%～80% | |

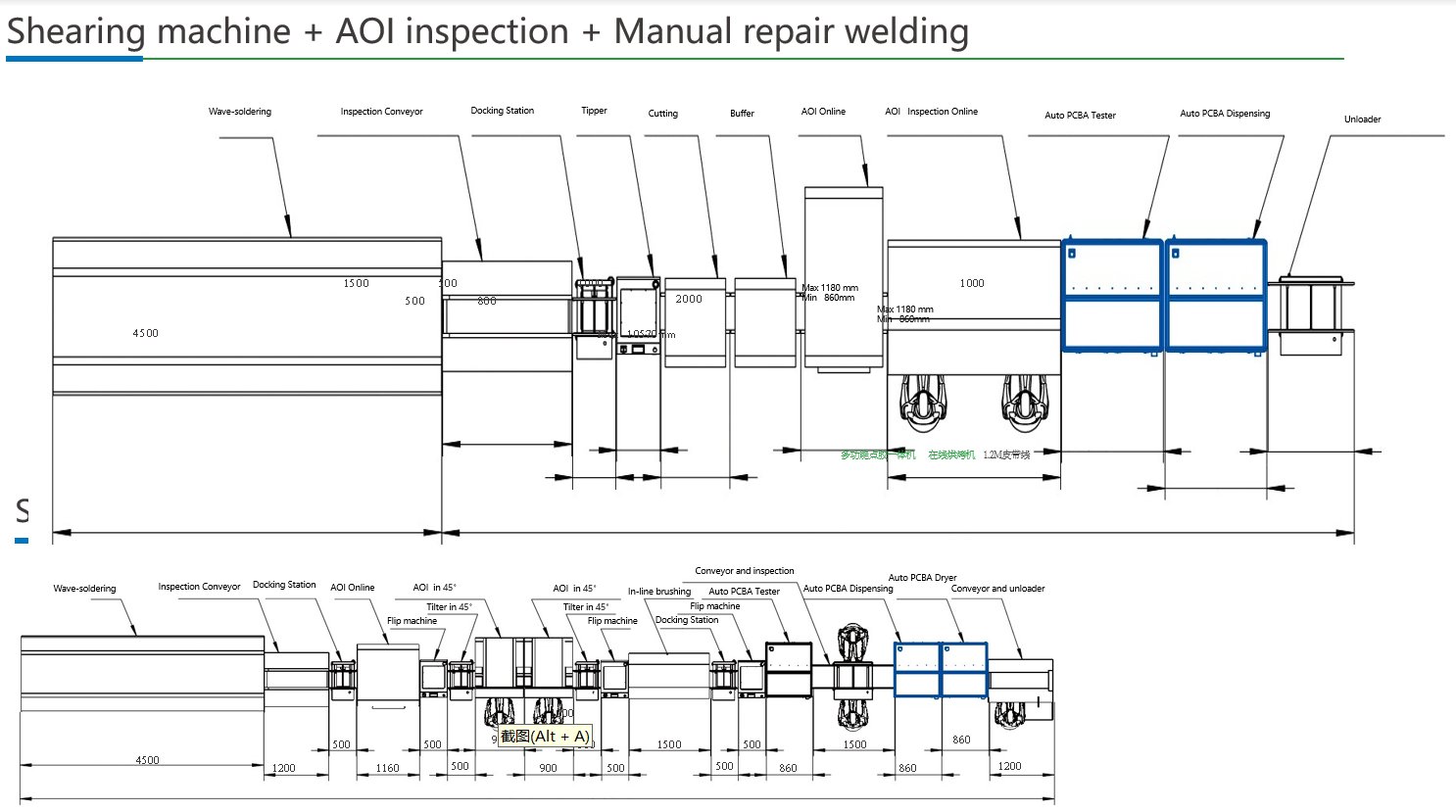

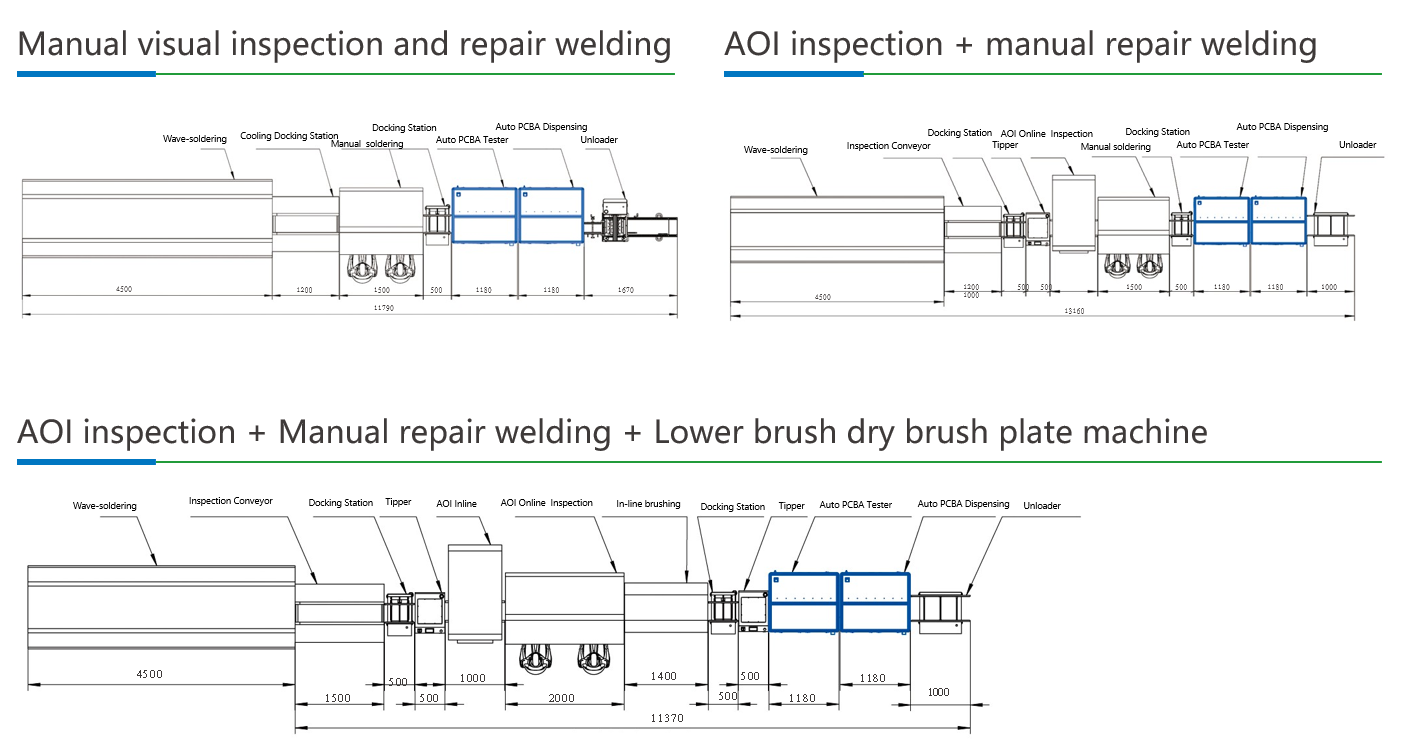

CLASSIC LAYOUT SCHEME DIAGRAM
CLASSIC LAYOUT SCHEME DIAGRAM

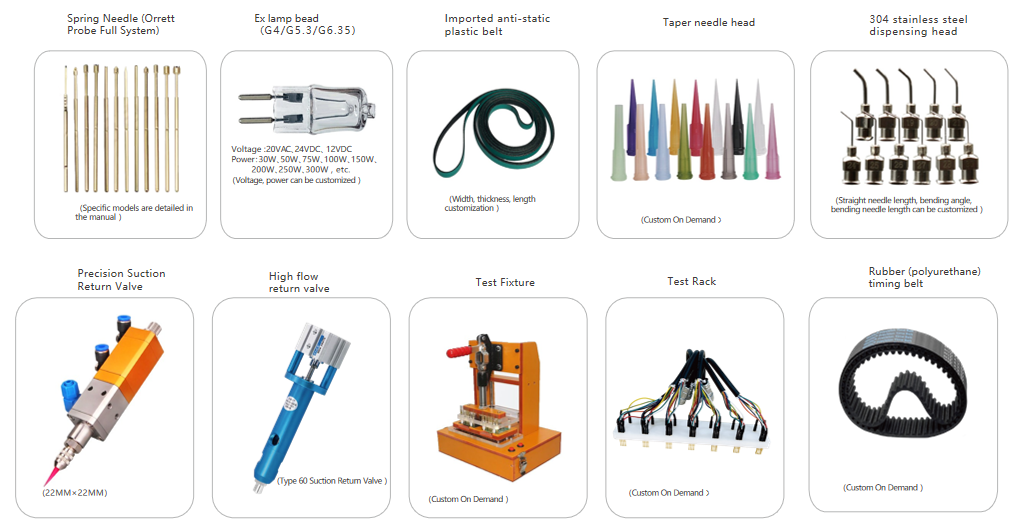

COMMONLY USED ACCESSORIES

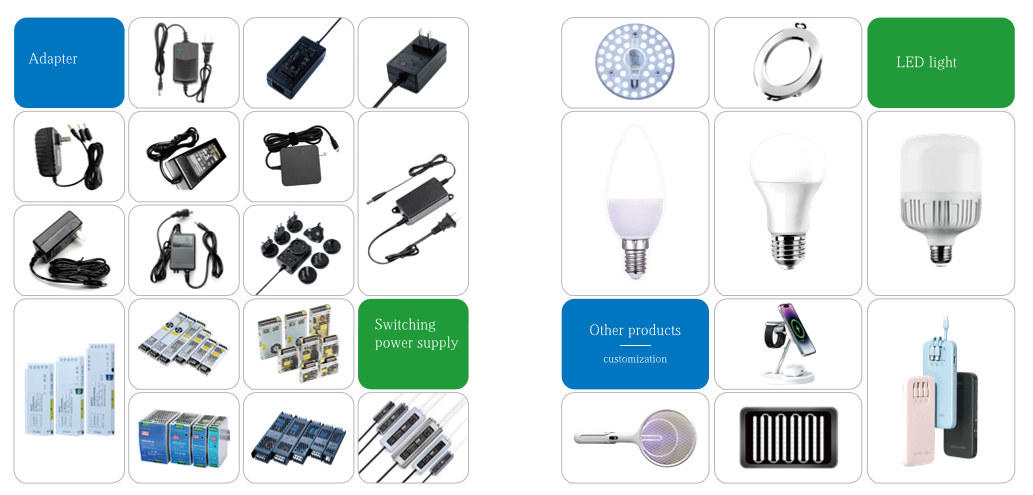

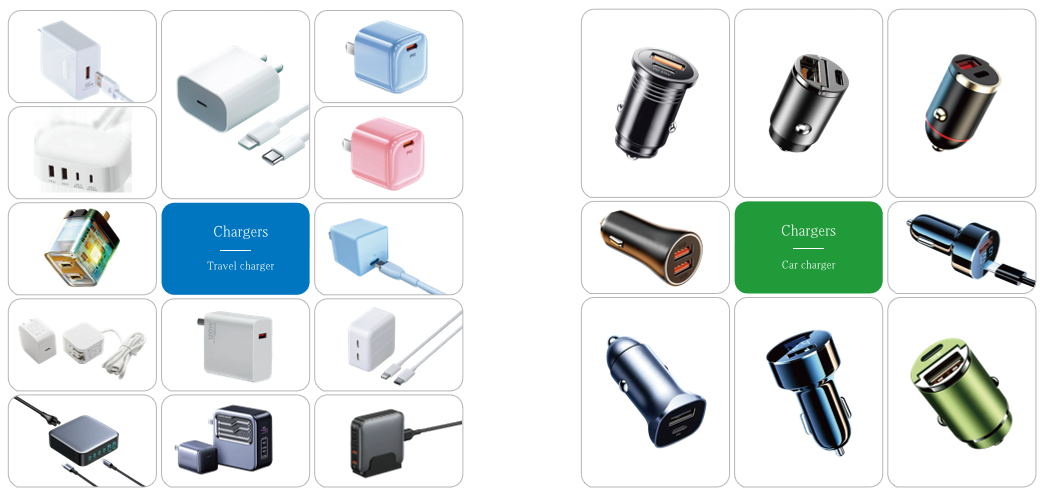

INDUSTRY SECTORS COVERED
