1. Customer plant height: Plant height at wrapping machine location is 5 meters; equipment used on ground floor; logistics passage is unobstructed.
2. Pallet Specifications: L1200 × W1200 × H120mm (Standard)
3. Cargo Specifications: L1200 × W1200 × H1800mm Max (including pallet height 120)
4. Turntable Diameter: 2000mm; Conveyor Table Height: 550mm (Standard)
5. Effective Wrapping Height: 1800mm (Standard)
6. Stretch film starting wrapping height: 90mm above roller conveyor surface (subject to actual specifications).
7. Cargo Weight: 1000kg Max
8. Packaging Efficiency: 20–25 pallets/hour (Standard)
9. Conveying Method: Roller conveyor
10. Turntable Rotation Speed: 3–15 rpm (adjustable)
11. Film Carriage Type: Pre-stretch film carriage, stretch ratio 250%; film tension adjustable
12. Automatic film application, film cutting, and film tail wiping mechanism, or optional heat-sealing film mechanism (for AS/RS entry)
13. Stretch Film: Thickness 20–23μm, Ø250mm, Width 500mm, Core Ø76mm; Pre-stretch ratio 250%–300%, 15KG/reel, sticky on inner side, non-sticky on outer side, machine-grade stretch film.
14. Top Cover Film: Thickness 50–60μm, Ø250mm, Width 1700mm, Core Ø76mm; Length approx. 500m, 38–40KG/reel, non-sticky, static-free, PE film.
15. Film Cutting Method: 16. Wrapping Machine: Blade cutting 17. Top Cover Film: Rodless cylinder + blade
16. Air Supply: 0.4–0.6 MPa
17. Power Supply: 3-phase 5-wire AC 380V/50Hz

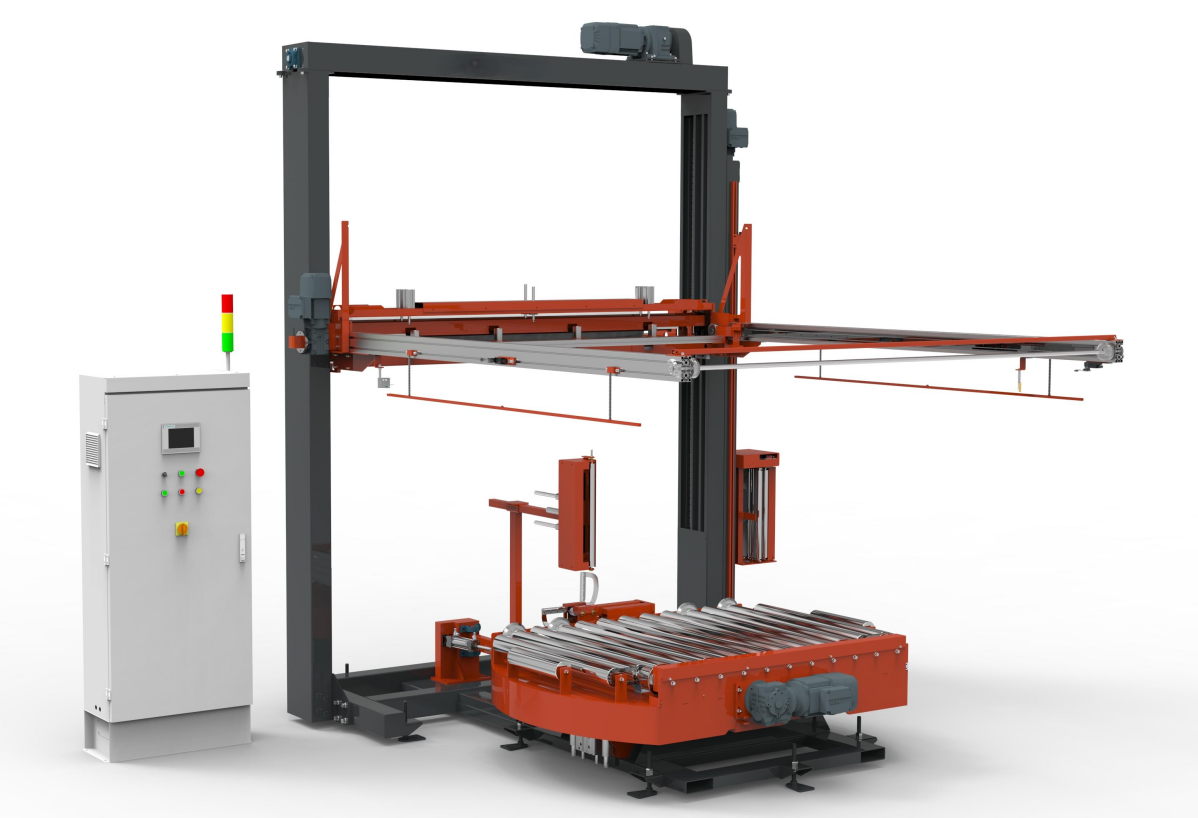

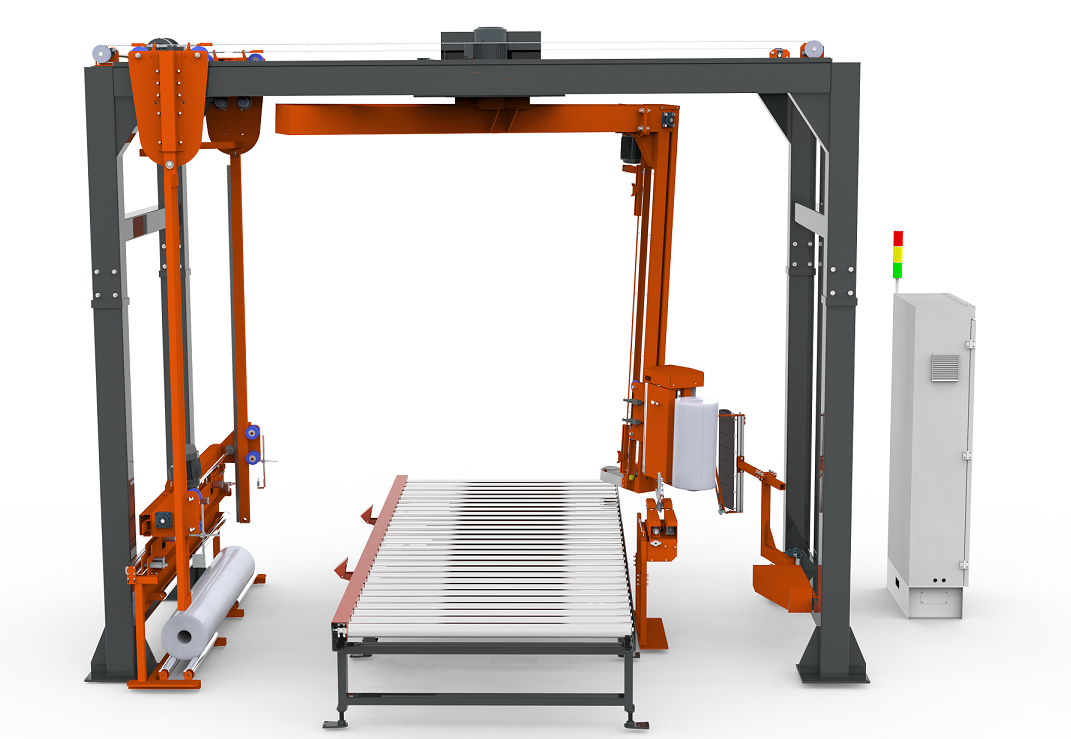

18. Multiple models available, divided into semi-automatic and fully automatic (turntable type, cantilever type, high-speed gantry ring type).
