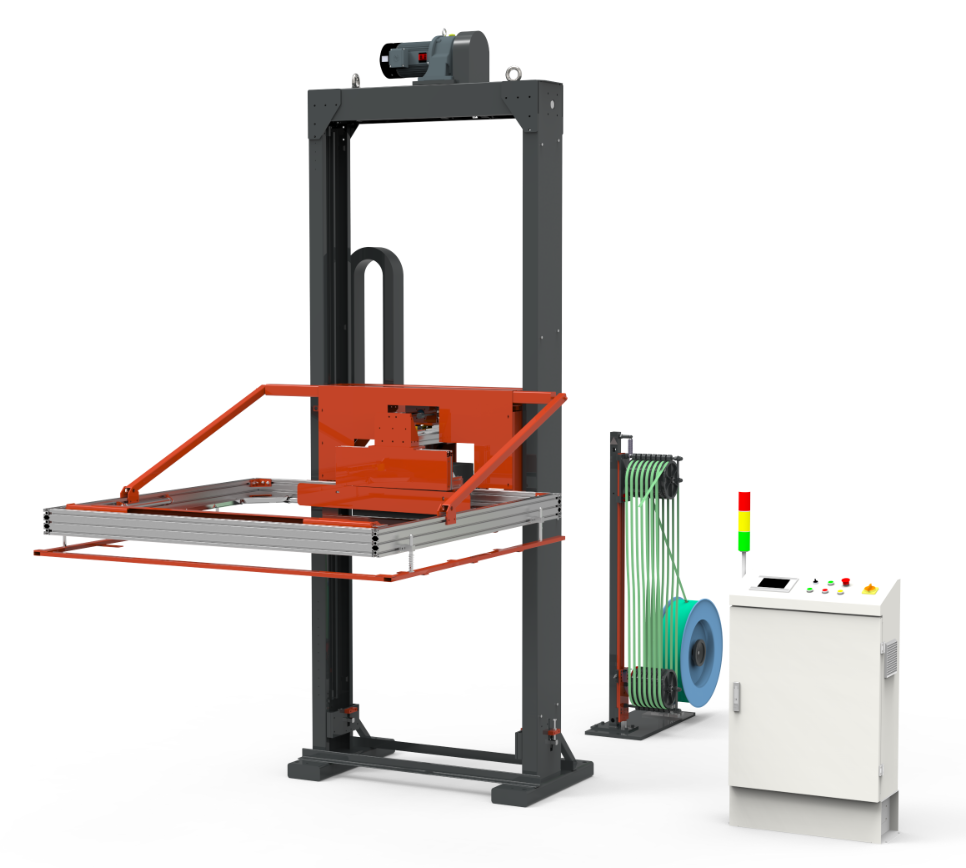

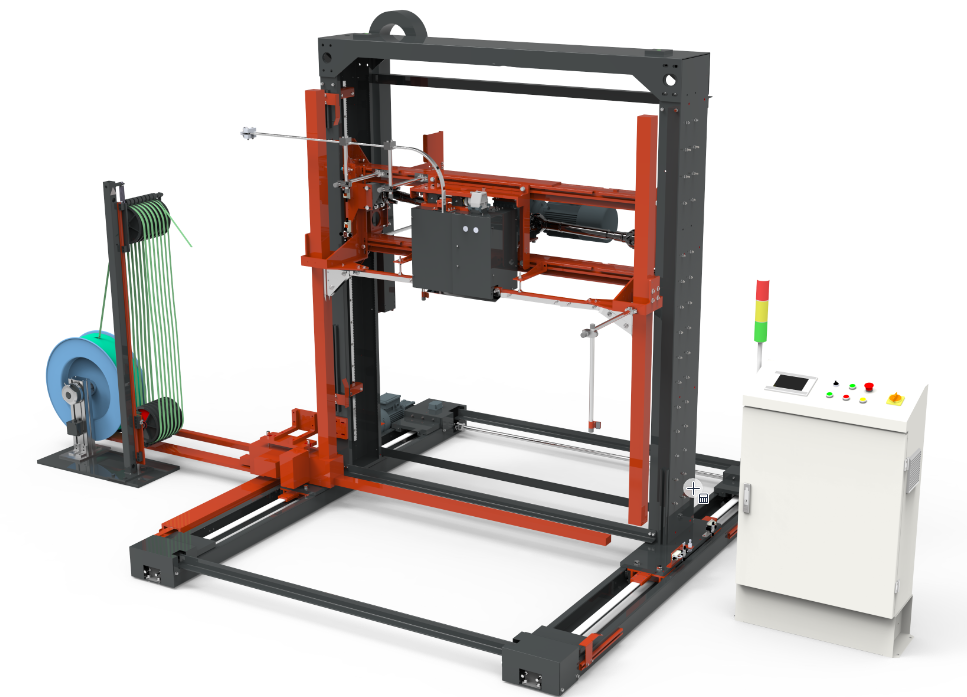

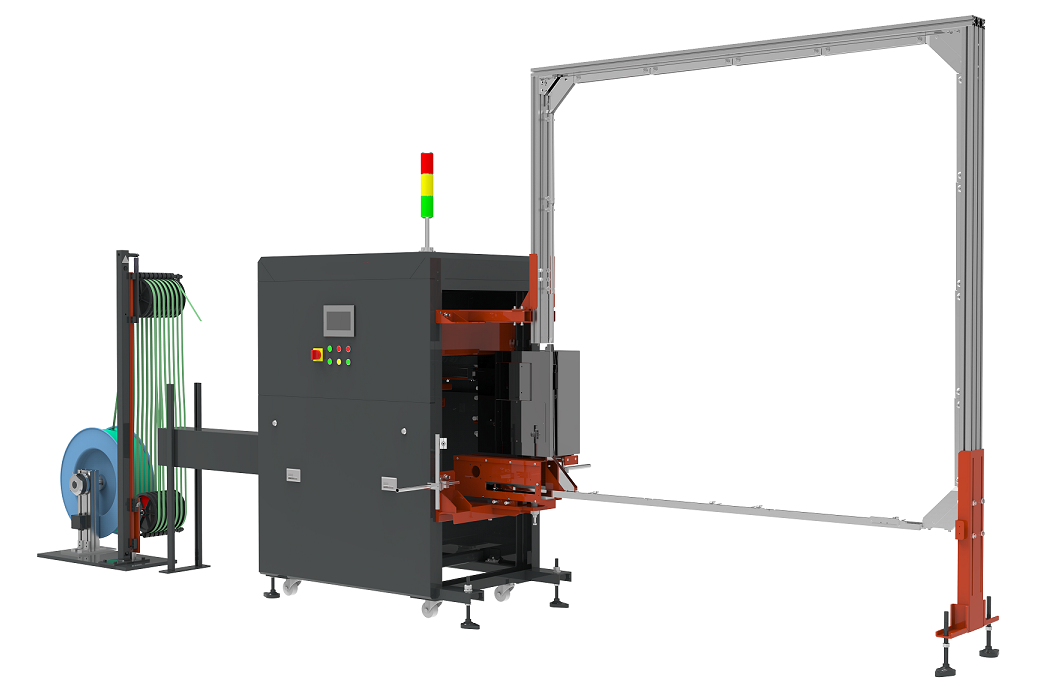

Strapping & Bundling Equipment – PET Strap Arrow-Type Strapping Machine
♦ Main Application:
Main Features of Automatic Strapping Equipment:
1. Tape head gear and rack electric drive module; tape head stroke 500mm.
2. Modular electric servo arrow-type (through-the-arch) system.
3. Tape head balanced force system; four-corner force distribution is more uniform and balanced.
4. Independent strap dispenser with reel cart, linear rail drive, electromagnetic brake, and buffer device to effectively prevent strap damage.
5. Optional strap breakage alarm module;
6. High-end production lines can optionally be equipped with dual tape head models to ensure non-stop strap replacement when one strap reel is exhausted;
7. Technical Parameters:
| General Parameter | ||
| Power Supply | 3/N, PE, 380V | |
| Control Voltage | 24V DC | |
| Power | 1.2KW | |
| Standard Diameter | 1300 | Length 2900 |
| Strapping Speed | 13″ | |
| Positioning Setting | Touchscreen NC Teaching | Multi-program mode programming optional |
| Strapping Head Parameter | ||
| Strap Feeding Speed | 3.5 m/s | |
| Strapping Tension | 200–2000N | NC, linearly adjustable |
| Strap Material | PET/PP | Automatic grade compliant with standards |
| Strap Width | 9–12–16mm | |
| Strap Thickness | 0.55–0.9mm | |
| Weight | Approx. 55Kg | |
| Welding Method | High-frequency friction | Buckle-free, no hot knife |
